What is a parallel motion linkage?
By John Peck

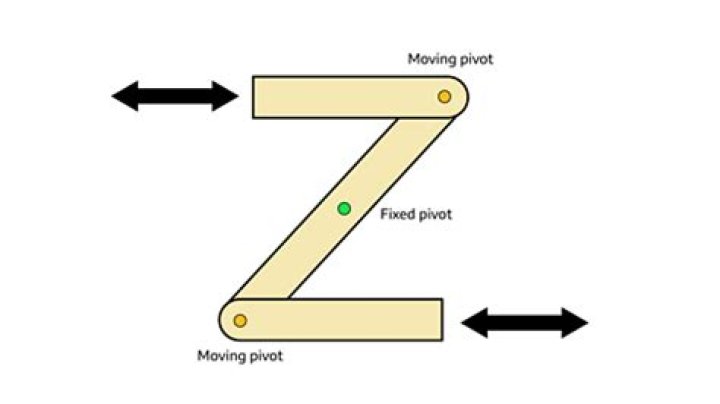

The parallel motion is a mechanical linkage invented by the Scottish engineer James Watt in 1784 for the double-acting Watt steam engine. It allows a rod moving practically straight up and down to transmit motion to a beam moving in an arc, without putting significant sideways strain on the rod.Click to see full answer. Keeping this in consideration, what is a reverse motion linkage?REVERSE MOTION LINKAGE: As the top rod moves to the left the bottom rod moves to the right. The bars move in opposite directions. Another way of describing this linkage is the direction of movement in one rod is reversed in the other rod. The fixed pivot is the centre of rotation.Additionally, what is a bell crank linkage? This linkage is known as a Bell Crank (so called because it was used in Victorian times in linkages used to operate doorbells and servants’ bells). They can be used to change the angle of motion through any angle but 90° is common. Subsequently, one may also ask, what is a linkage in technology? Linkage. machine component. Linkage, in mechanical engineering, a system of solid, usually metallic, links (bars) connected to two or more other links by pin joints (hinges), sliding joints, or ball-and-socket joints so as to form a closed chain or a series of closed chains.How do levers and linkages work?Systems have an input, process and an output. In a lever and linkage mechanism, the ‘input movement’ is where the user pushes or pulls a card strip. The ‘output movement’ is where one or more parts of the picture move. When you push the card strip (input movement), the two levers move (output movement).
